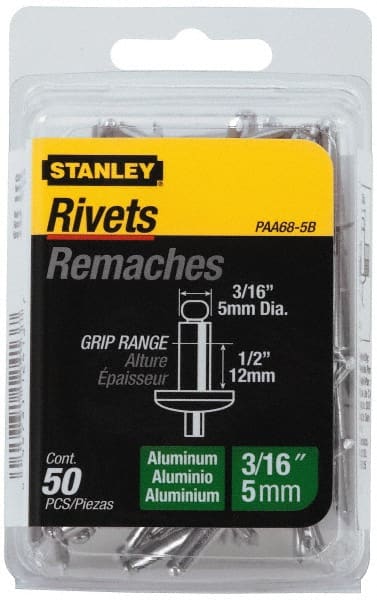

Stanley - Aluminum Color Coded Blind Rivet - Aluminum Mandrel, 3/8" to 1/2" Grip, 3/8" Head Diam, 0.188" to 0.196" Hole Diam, 0.7" Length Under Head, 3/16" Body Diam
Item #: 74029646
Brand: Stanley
Model #: PAA68-5B
Exact Tooling IR#: 04
Features and Benefits
Color coded rivets are color coded based on material for easy identification.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Type | Color Coded |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.3750 |
| Maximum Grip (Decimal Inch) | 0.5000 |
| Maximum Grip (Inch) | 1/2 |
| Head Diameter (Decimal Inch) | 0.3750 |
| Head Diameter (Inch) | 3/8 |
| Minimum Hole Diameter (Decimal Inch) | 0.1880 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Length Under Head (Decimal Inch) | 0.7000 |
| Body Diameter (Decimal Inch) | 0.1875 |
| Body Diameter (Inch) | 3/16 |
| Head Height (Decimal Inch) | 0.0600 |
