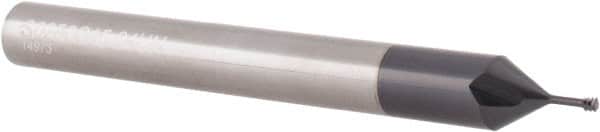

Carmex - #1-64, #2-64 Thread, 1/4" Shank Diam, TiAlN Coating, Solid Carbide Straight Flute Thread Mill - 3 Flutes, 2-1/2" OAL, #1 Min Noml Diameter
Item #: 74047820
Brand: Carmex
Model #: S0250C1564UN
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Threads Per Inch | 64 |
| Thread Size (Inch) | #1-64; #2-64 |
| Minimum Nominal Diameter (Inch) | #1 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.0550 |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 0.1500 |
| Thread Standard | UNC; UNF |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.5000 |
| Through Coolant | No |
| Shank Length (Decimal Inch) | 2.3500 |
| Material Grade | MT7 |
| Thread Mill Type | Mini |
