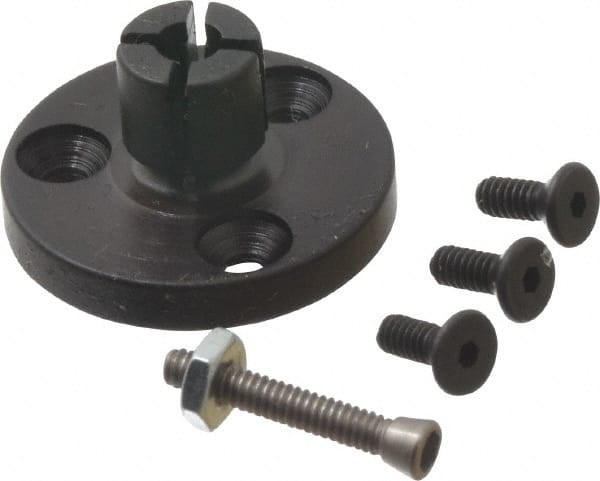

Mitee-Bite - 0.16 to 0.29" Expansion Diam, 250 Lb Holding Force, 2-56 Mounting Screw, 2-56 Center Screw, Mild Steel ID Expansion Clamps
Item #: 74054016
Brand: Mitee-Bite
Model #: 31000
Product Specifications
| Flange Diameter (Decimal Inch) | 0.7870 |
| Maximum Expansion Diameter (Decimal Inch) | 0.2900 |
| Minimum Expansion Diameter (Decimal Inch) | 0.1600 |
| Holding Force (Lb.) | 250.00 |
| Center Screw Thread Size | 2-56 |
| Mounting Screw Thread Size | 2-56 |
| Material | Mild Steel |
| Mount Hole Diameter (Decimal Inch) | 0.5400 |
| Flange Thickness (Decimal Inch) | 0.1200 |
| Expansion Height (Decimal Inch) | 0.2400 |
| Height Above Flange (Decimal Inch) | 0.3000 |
| Overall Height (Decimal Inch) | 0.4200 |
| Number of Mount Holes | 3 |
| Thread Length Below Base (Decimal Inch) | 0.1600 |
| Torque (Ft/Lb) | 0.50 |
