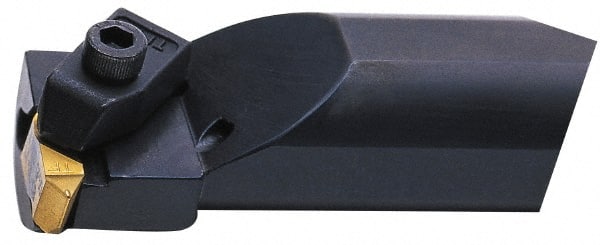

Tool-Flo - Internal Thread, Left Hand Cut, 2" Shank Width x 2" Shank Height Indexable Threading Toolholder - 16" OAL, FL 4R Insert Compatibility, A32 Toolholder, Series Flo-Lock
Item #: 74094491
Brand: Tool-Flo
Model #: 96403220
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 2.0000 |
| Shank Width/Diameter (Inch) | 2 |
| Shank Height (Inch) | 2 |
| Shank Height (Decimal Inch) | 2.0000 |
| Overall Length (Decimal Inch) | 16.0000 |
| Overall Length (Inch) | 16 |
| Insert Compatibility | FL 4R |
| Series | Flo-Lock |
| Toolholder Style | A32 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 1.2960 |
| Minimum Bore Diameter (Decimal Inch) | 2.7500 |
