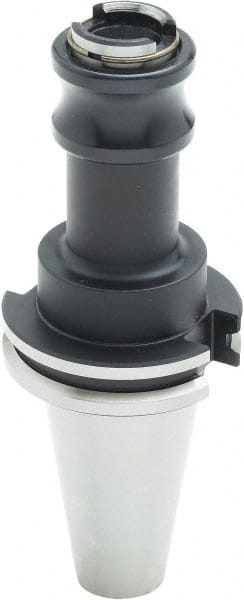

Parlec - 1" Straight Shank Diam Rigid Tapping Adapter - #6 to 1-5/8" Tap Capacity, 5-1/4" Projection, Size 770 Adapter, Quick Change
Item #: 74126004
Brand: Parlec
Model #: S10-77FS5
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (mm) | M5 |
| Minimum Tap Capacity (Inch) | #6 |
| Maximum Tap Capacity (Inch) | 1-5/8 |
| Maximum Tap Capacity (mm) | M33 |
| Projection (Decimal Inch) | 5.2500 |
| Quick Change | Yes |
| Adapter Size | 770 |
| Nose Diameter (Decimal Inch) | 2.3100 |
| Through Coolant | No |
