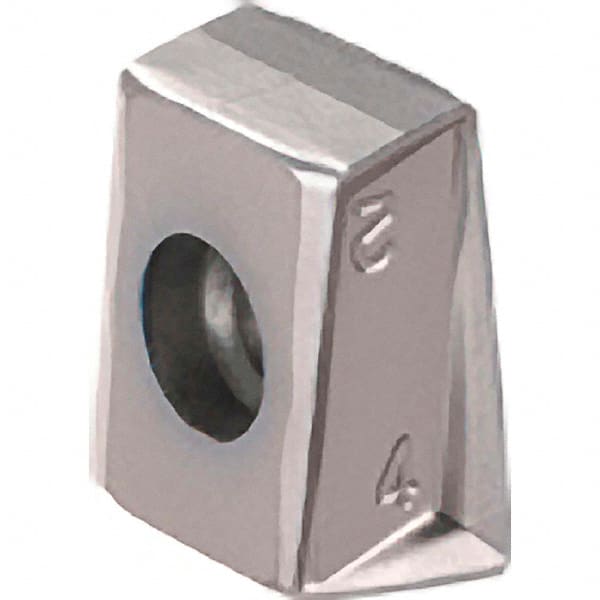

Iscar - T490 LNMX0804 Grade DT7150 Carbide Milling Insert - Al2O3/TiAlN Finish, 0.2925" Thick, 0.4mm Corner Radius
Item #: 74128174
Brand: Iscar
Model #: 5605473
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNMX |
| Insert Size | 0804 |
| Material | Carbide |
| Manufacturer's Grade | DT7150 |
| Coating | Al2O3/TiAlN |
| Width (Decimal Inch) | 0.1670 |
| Length (Decimal Inch) | 0.3380 |
| Thickness (Decimal Inch) | 0.2925 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 0.000 |
| Coating Process | PVD/CVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| ISO Number | T490 LNMX 0804PN-R |
