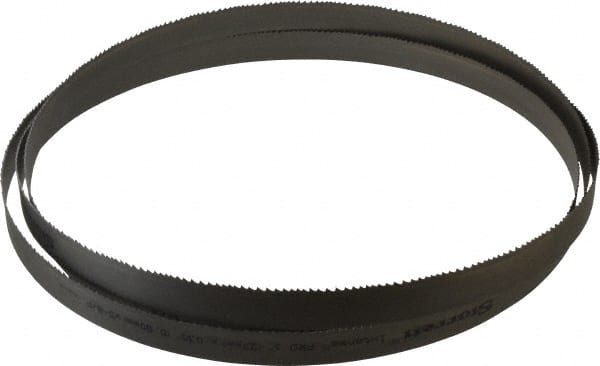

Starrett - 5 to 8 TPI, 12' Long x 1" Wide x 0.035" Thick, Welded Band Saw Blade - Bi-Metal, Toothed Edge, Modified Tooth Set, Contour Cutting
Item #: 74134883
Brand: Starrett
Model #: 20636
Exact Tooling IR#: 04
Features and Benefits
Bi-metal blades feature a toothed edge made from high speed steel (HSS) attached to a flexible steel backing through an electron-beam welding process. This configuration results in a blade that makes precise cuts while resisting breakage.
The cutting surface of a toothed edge is composed of a row of pointed teeth. Common tooth variations include the number of teeth per inch and pitch pattern. They are used on ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Blade Material | Bi-Metal |
| Tooth Material | High Speed Steel |
| Blade Length (Feet) | 12' |
| Teeth Per Inch | 5-8 |
| Blade Width (Inch) | 1 |
| Blade Thickness (Decimal Inch) | 0.0350 |
| Cutting Edge Style | Toothed Edge |
| Tooth Set | Modified Set |
| Tooth Rake Angle | Positive |
| Pitch Pattern | Variable |
| Contour Cutting | Yes |
