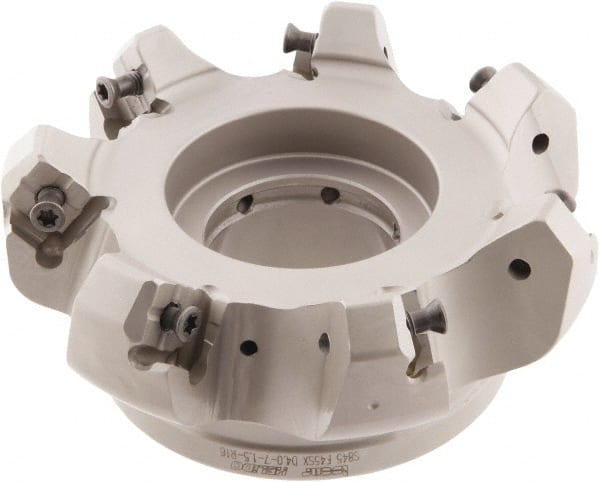

Iscar - 4" Cut Diam, 1-1/2" Arbor Hole, 0.276" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 7 Inserts, S845 SX.U 16.. Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series Helido
Item #: 74151242
Brand: Iscar
Model #: 3181094
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | S845 SX.U 16.. |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | S845 F45SX-16 |
| Number of Flutes | 7 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Maximum Body Diameter (Decimal Inch) | 4.5800 |
| Maximum RPM | 4000 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.2900 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | S845 SXCU 160608AD-RMM; S845 SXHU 1606AD-R-W; S845 SXMU 1606ADTR-MM; S845 SXMU 1606ADTR-RM |
