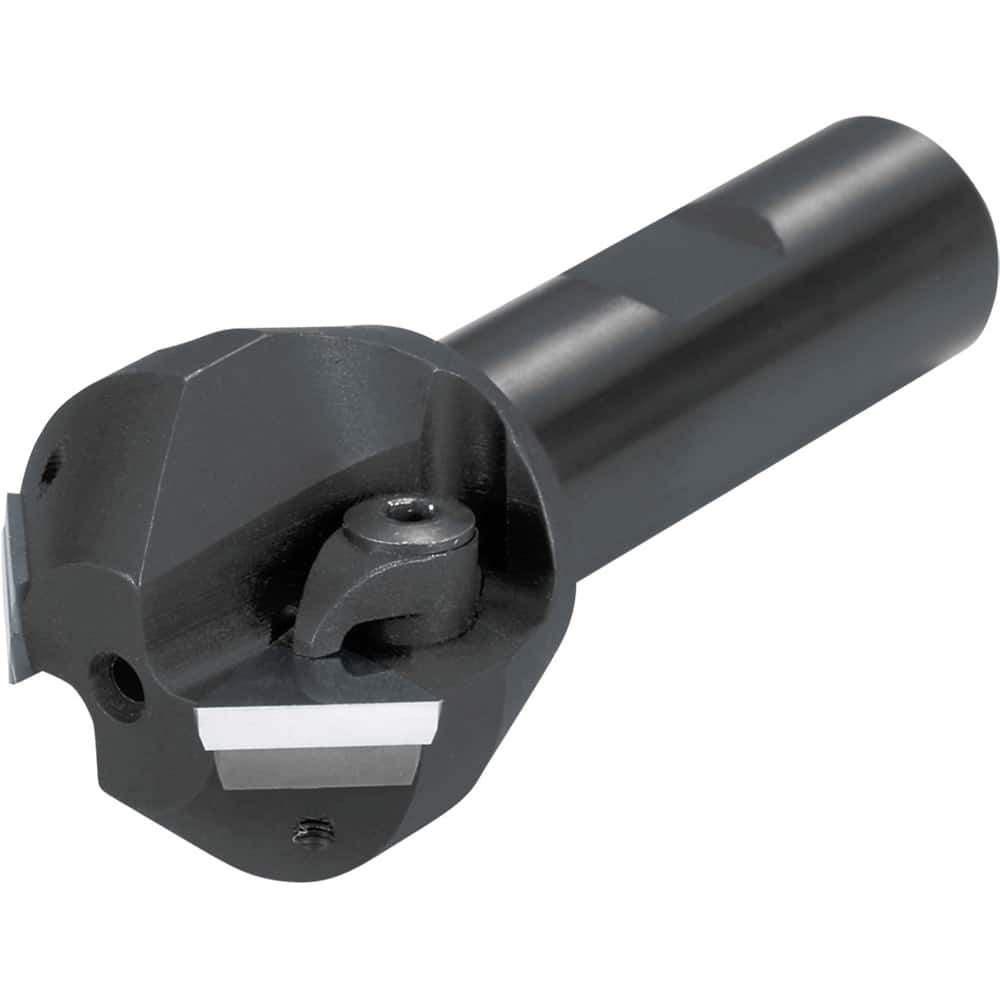

Kyocera - 45° Lead Angle, 1-1/2" Cut Diam, 3/4" Shank Diam, Indexable & Chamfer End Mill
Item #: 74223876
Brand: Kyocera
Model #: 8603978
Product Specifications
| Cutting Diameter (Decimal Inch) | 1-1/2 |
| Minimum Cutting Diameter (Inch) | 1.5000 |
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 3.2800 |
| Insert Style | TPG; TPM; TPU |
| Series | MTP |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3800 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Clamp |
| Toolholder Style | MTP |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.2300 |
| Weldon Flat | Yes |
| Axial Rake Angle | 5 |
| Radial Rake Angle | -2 |
| Shank Length (Decimal Inch) | 2.0500 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | TPG32?; TPM32?; TPU32? |
| ISO Number | MTP4515075W |
