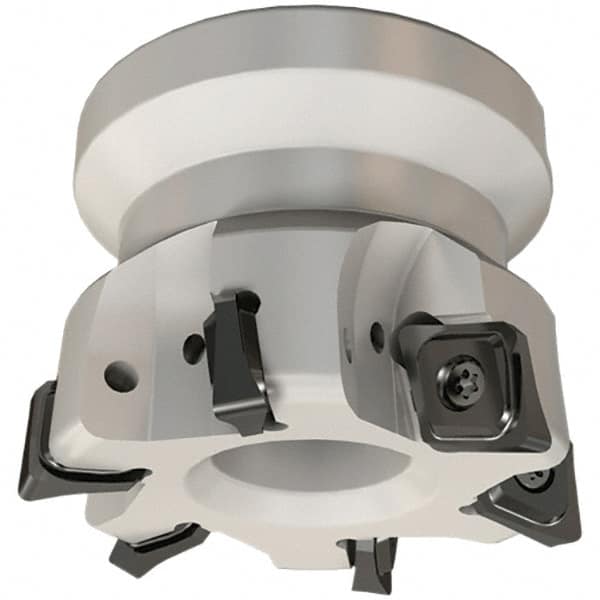

Iscar - 80mm Cut Diam, 27mm Arbor Hole, 8mm Max Depth of Cut, 93° Indexable Chamfer & Angle Face Mill - 8 Inserts, ENHT Insert, Right Hand Cut, 8 Flutes, Series TorMill
Item #: 74251943
Brand: Iscar
Model #: 3103796
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 93 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | ENHT |
| Series | TorMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | F93CN |
| Number of Flutes | 8 |
| Keyway Width (mm) | 12.40 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.1180 |
| Counterbore Diameter (Decimal Inch) | 1.4170 |
| Complete Insert Compatibility | ENHT |
