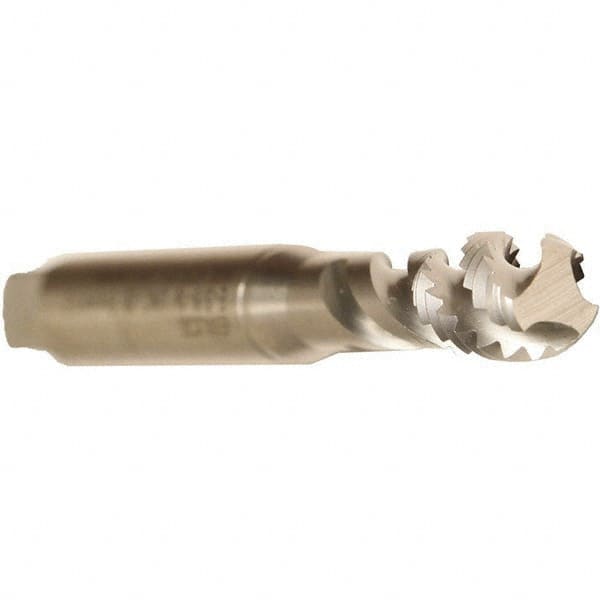

Emuge - M2.5x0.45 Metric Coarse, 3 Flute, 45° Helix, Bottoming Chamfer, Bright Finish, Cobalt Spiral Flute STI Tap - Right Hand Flute, 2.2047" OAL, 0.1378" Shank Diam, 0.1969" Thread Length, 6H (mod) Class of Fit, Series Enorm Z
Item #: 74305939
Brand: Emuge
Model #: B0513500.0965
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M2.5x0.45 |
| Class of Fit | 6H (mod) |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (Decimal Inch) | 2.2047 |
| Overall Length (mm) | 56.00 |
| Helix Angle | 45 |
| Thread Standard | Metric Coarse |
| Material | Cobalt |
| Flute Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.1969 |
| Thread Length (mm) | 5.00 |
| Series/List | Enorm Z |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Shank Diameter (mm) | 3.50 |
