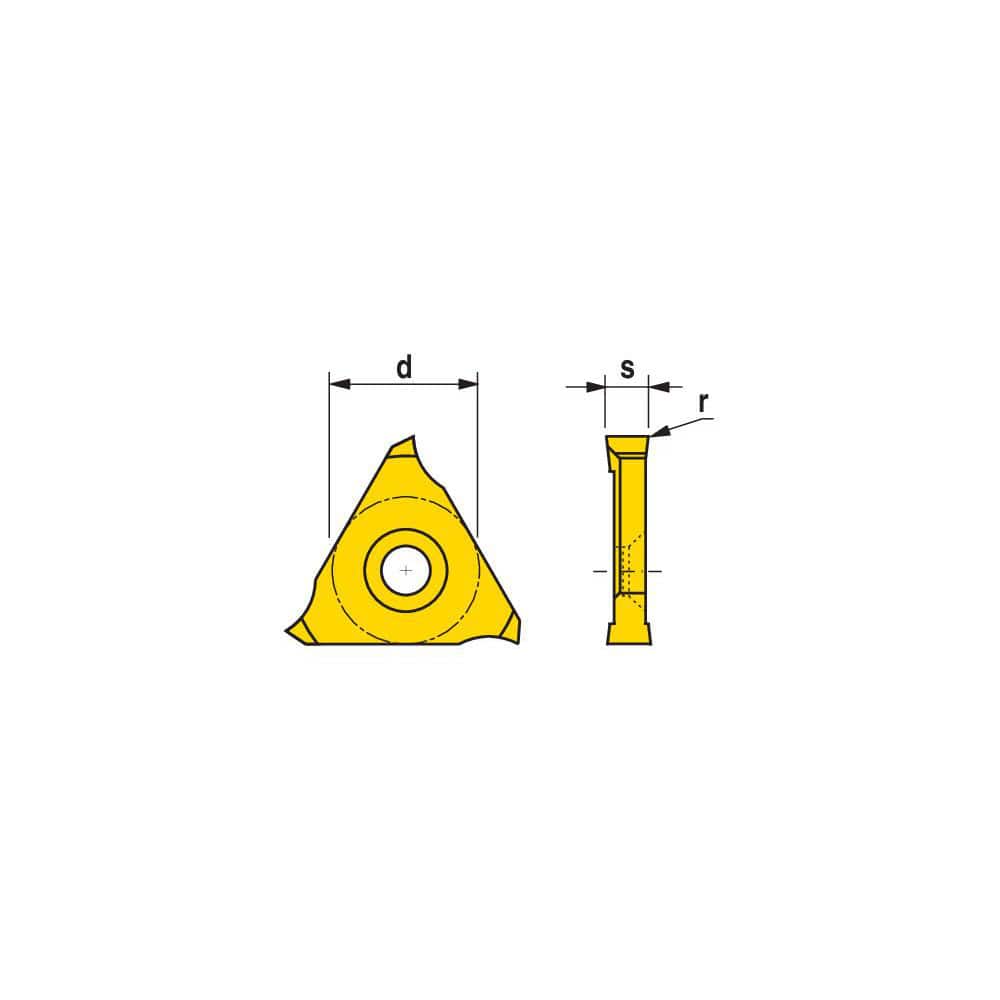

Milling Insert: TXR 223202 CWK10, CWK10, Solid Carbide N/A Finish,
Item #: 74480021
Brand: Ceratizit
Model #: 50381532
Product Specifications
| Insert Style | TX-R |
| Insert Size Code | 2232 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CWK10 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Insert Hand | Right Hand |
| Series | TX-R |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Non-ISO |
| Secondary Workpiece Material Code | O |
| Iso Code | TXR 223202 CWK10 |
| Chip Breaker | None |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1260 |
