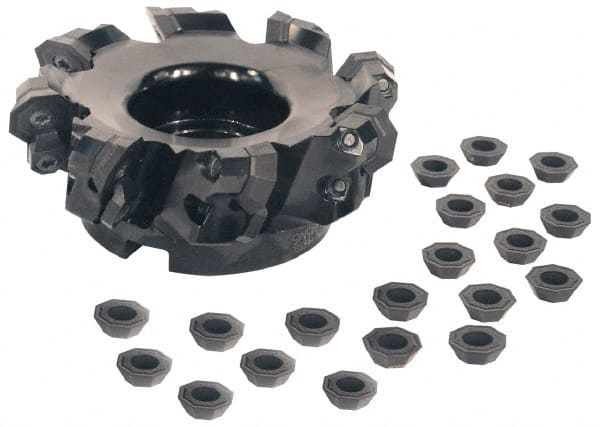

Kennametal - 3" Cut Diam, 1" Arbor Hole, 5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 4 Inserts, OF.T 07L6... Insert, Right Hand Cut, 4 Flutes, Through Coolant, Series KSOM
Item #: 74527540
Brand: Kennametal
Model #: 3093646
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 43 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (mm) | 44.45 |
| Insert Compatibility | OF.T 07L6... |
| Series | KSOM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Hub Diameter (Decimal Inch) | 2.0310 |
| Hub Diameter (mm) | 51.60 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Maximum Body Diameter (Decimal Inch) | 3.4410 |
| Maximum RPM | 7900 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
