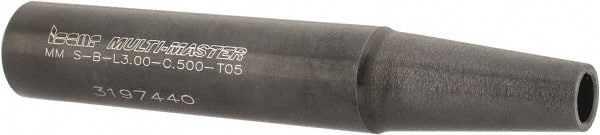

Iscar - Multimaster 1/2" 85° Shank Milling Tip Insert Holder & Shank - 0.3" Neck Diam, T05 Neck Thread, 3" OAL, Carbide MM S-B Tool Holder
Item #: 74543844
Brand: Iscar
Model #: 3103410
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 85 Degree Shank |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Neck Diameter (Decimal Inch) | 0.3000 |
| Neck Thread Size | T05 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 3.0000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.9300 |
| Effective Length (Decimal Inch) | 1.0000 |
| Shank Shape | Straight |
| Toolholder Style | MM S-B |
