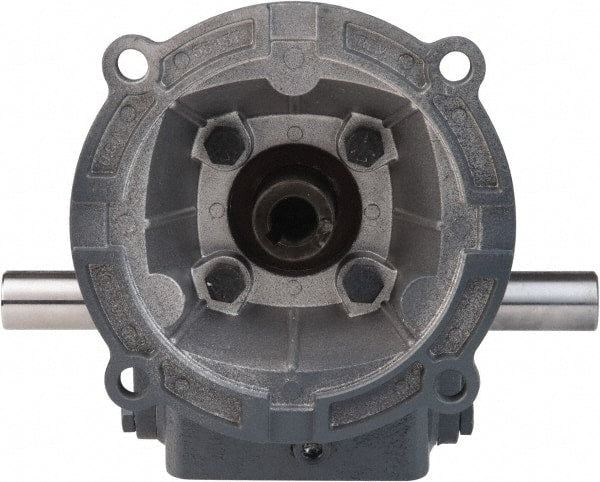

Boston Gear - 2.38 Centerline Distance, 30:1, 58 RPM Output, 1.33 Input Horsepower, 1,200 Lbs. Max Torque, Speed Reducer - Part No. F724-30-B7-H, Double Shaft Left & Right, 7/8" Bore, 4.88" High, 140TC NEMA
Item #: 74657776
Brand: Boston Gear
Model #: 52594
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.380 |
| Ratio | 30:1 |
| NEMA Size | 140TC |
| PartNo | F724-30-B7-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.875 |
| Height (Inch) | 4.88 |
| Maximum Torque Inch/Lbs (Pounds) | 1200.00 |
| Maximum Input Horsepower | 1.33 |
| Output RPM at 1750 Input | 58.0 |
