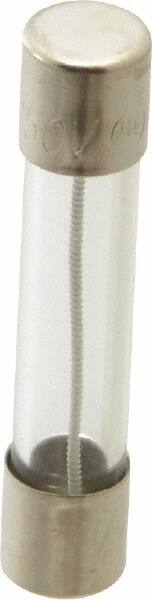

Cooper Bussmann - 250 VAC, 32 VDC, 0.4 Amp, Time Delay Miniature Glass Fuse - 1-1/4" OAL, 1/4" Diam
Item #: 74680901
Brand: Cooper Bussmann
Model #: MDL-4-10-R
Exact Tooling IR#: 04
Features and Benefits
Miniature glassfuses are constructed of a conductive metal placed on a small glass body. Fuses with glass bodies are easier to see if they are blown. They are commonly used in appliances and electronics.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Glass |
| Amperage (mA) | 400 |
| Amperage | 0.40 |
| Voltage | 250 VAC; 32 VDC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 31-3/4 |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Overall Diameter (mm) | 6.35 |
| Overall Diameter (Inch) | 1/4 |
| Overall Diameter (Decimal Inch) | 1/4 |
| Material | Glass |
| Interrupting Rating (A) | 10000 @ 125 V; 35 @ 250 V |
| Standards Met | CE Certified; CSA Class 1422-01 Certified; MIL-STD-202 Method 204; RoHS 2002/95/EC; UL 248-14; UL Listed Guide JDYX File E19180 |
