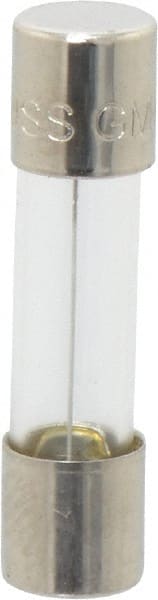

Cooper Bussmann - 250 VAC, 32 VDC, 3 Amp, Time Delay Miniature Glass Fuse - 20mm OAL, 10 at 125 V kA Rating, 5mm Diam
Item #: 74690538
Brand: Cooper Bussmann
Model #: GMC-3-R
Exact Tooling IR#: 04
Features and Benefits
Miniature glassfuses are constructed of a conductive metal placed on a small glass body. Fuses with glass bodies are easier to see if they are blown. They are commonly used in appliances and electronics.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Glass |
| Amperage | 3 |
| Voltage | 250 VAC; 32 VDC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 20 |
| Overall Length (Decimal Inch) | 0.7880 |
| Overall Diameter (mm) | 5.00 |
| Overall Diameter (Decimal Inch) | 0.1970 |
| Material | Glass |
| Interrupting Rating (A) | 100 @ 250 V; 10000 @ 125 V |
| Interrupting Rating (kA) | 10 @ 125 V |
| Standards Met | CSA Class 1422-01 File E65063 Certified; KC-Mark Certificate SU05011-4003; MITI Approved; RoHS Compliant; UL Listed Guide JDYX File E19180 |
