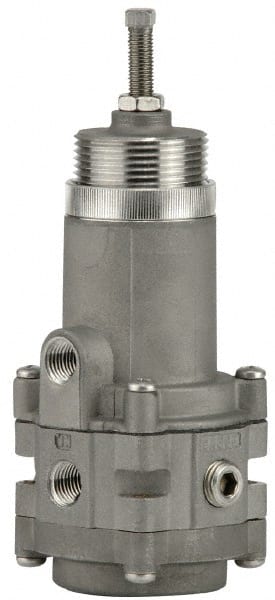

ARO/Ingersoll-Rand - 1/4 NPT Port, 20 CFM, Stainless Steel Diaphragm Operated Regulator - 2 to 150 psi Range, 250 Max psi Supply Pressure, 1/4" Gauge Port Thread, 2-1/2" Wide x 6.89" High
Item #: 74700337
Brand: ARO/Ingersoll-Rand
Model #: PRSS21-600
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Diaphragm Operated |
| Port Size NPT | 1/4 |
| Range | 2 - 150 |
| Maximum Supply Pressure (psi) | 250 |
| Pressure Gauge Included | No |
| Air Flow (CFM) | 20.0 |
| Maximum Temperature (F) | 180 |
| Width (Decimal Inch) | 2.5000 |
| Height (Inch) | 6.89 |
| Material | Stainless Steel |
| Gauge Port Thread Size | 1/4 |
| Minimum Temperature (F) | -20 |
| Modular Connection | No |
| Fluid Type | Compressed Air |
| Relief Function | Relieving |
