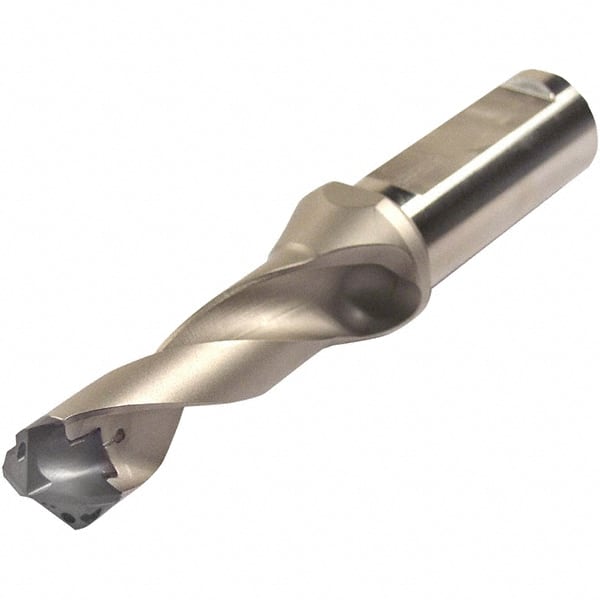

Iscar - 17 to 17.9mm Diam, 3xD, 51mm Max Depth, 20mm Shank Diam, 126.2mm OAL, Replaceable Tip Drill - IDK, IDM, IDN, IDP Insert, 17 Seat Size, DSM Toolholder, Series ChamDrillJet
Item #: 74753740
Brand: Iscar
Model #: 3201045
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrillJet |
| Minimum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (mm) | 17.90 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 51.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Style | IDK; IDM; IDN; IDP |
| Insert Seat Size | 17 |
| Toolholder Style | DSM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 76.20 |
| Overall Length (mm) | 126.20 |
| Shank Length (mm) | 50.00 |
