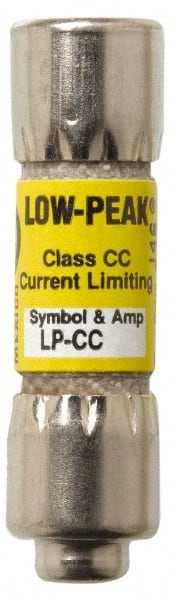

Cooper Bussmann - 300 VDC, 600 VAC, 2.8 Amp, Time Delay General Purpose Fuse - Fuse Holder Mount, 1-1/2" OAL, 20 at DC, 200 at AC (RMS) kA Rating, 13/32" Diam
Item #: 74760646
Brand: Cooper Bussmann
Model #: LP-CC-2-8/10
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | CC |
| Amperage | 2.80 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (mm) | 10.30 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Number of Elements | 2 |
| Mounting Type | Fuse Holder |
| Interrupting Rating (kA) | 20 @ DC; 200 @ AC (RMS) |
| Standards Met | CE Certified; CSA Class 1422-02 File 53787 Certified; UL Listed 248-4 Guide JDDZ File E4273 |
