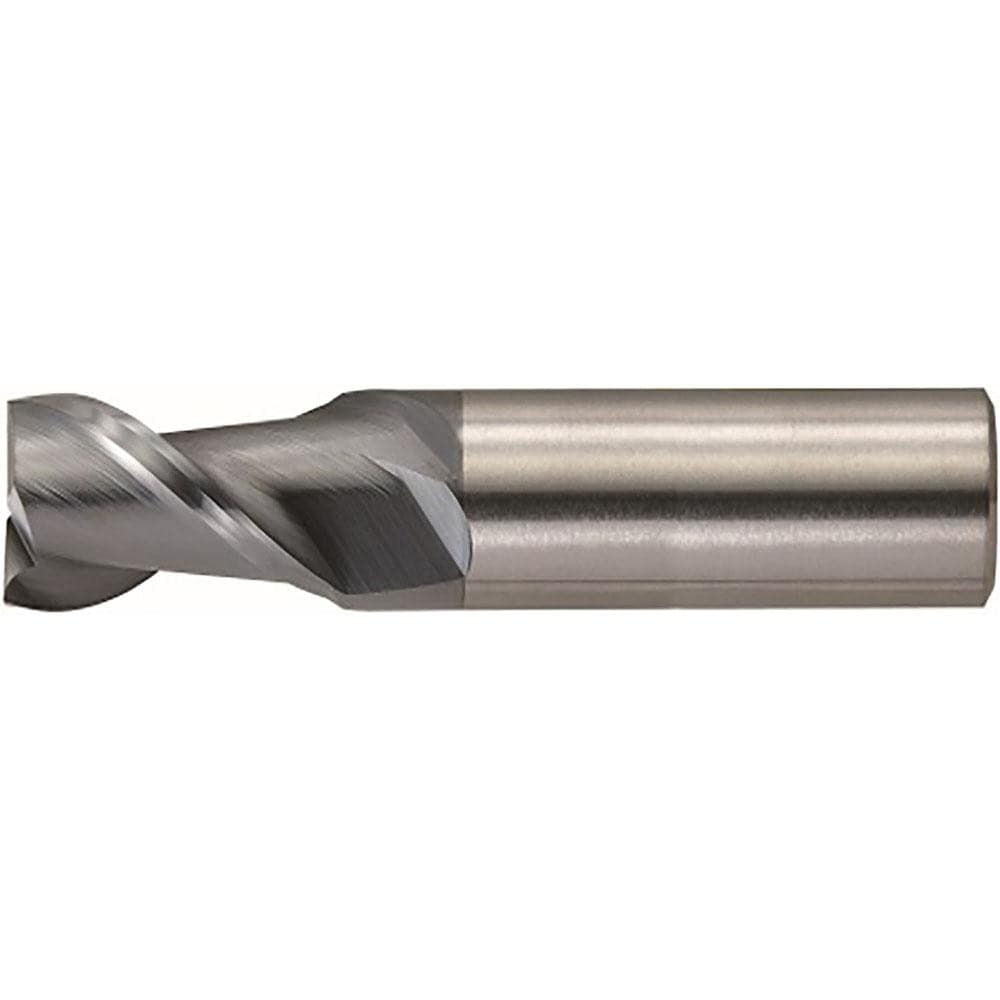

Square End Mill: 0.062" Dia, 0.0930" LOC, 2 Flute, Solid Carbide
Item #: 76450907
Brand: US Union Tool
Model #: 2209997
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0620 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.0930 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 1-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | UT |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Coating/Finish | UT |
| Variable Helix | Yes |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Straight |
| Shank Type | Straight |
| Material Grade | Super Micrograin |
| Length Type | Standard |
| Series | Inch Max |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | Japan |
