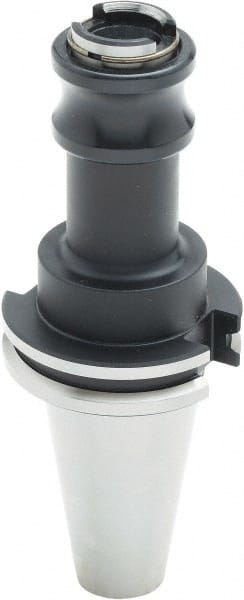

Parlec - CAT40 Taper Shank Tension & Compression Tapping Chuck - 13/16 to 1-3/8" Tap Capacity, 6.46" Projection, Size 3 Adapter, Quick Change
Item #: 74812496
Brand: Parlec
Model #: C40-30TA5
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Minimum Tap Capacity (Decimal Inch) | 0.8125 |
| Minimum Tap Capacity (Inch) | 13/16 |
| Maximum Tap Capacity (Inch) | 1-3/8 |
| Maximum Tap Capacity (Decimal Inch) | 1.3750 |
| Projection (Decimal Inch) | 6.4600 |
| Quick Change | Yes |
| Adapter Size | 3 |
| Nose Diameter (Decimal Inch) | 3.2900 |
| Tension (Decimal Inch) | 0.5600 |
| Compression (Decimal Inch) | 0.00 to 0.25 |
| Overall Length (Decimal Inch) | 9.1500 |
| Through Coolant | No |
