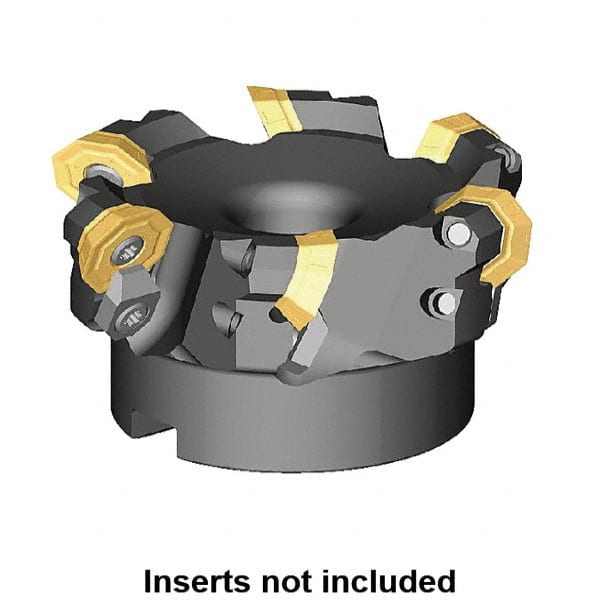

Kennametal - 110.95mm Cut Diam, 32mm Arbor Hole, 5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, OF.T 07L6... Insert, Right Hand Cut, 8 Flutes, Series KSOM
Item #: 74828005
Brand: Kennametal
Model #: 2213791
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 110.95 |
| Cutting Diameter (Decimal Inch) | 4.3681 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | OF.T 07L6... |
| Series | KSOM |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | KSOM |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 3.3071 |
| Hub Diameter (mm) | 84.00 |
| Maximum Body Diameter (Decimal Inch) | 4.1531 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | OFPT 07L6AFENGB |
