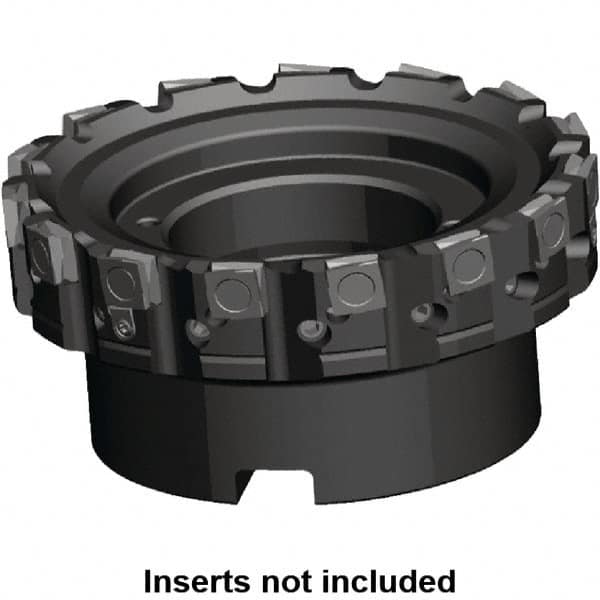

Kennametal - 14 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, SPHX 1205... Insert Compatibility, Series Fix-Perfect
Item #: 74828781
Brand: Kennametal
Model #: 1501660
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | SPHX 1205... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 6.00 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Clamp |
| Cutter Style | CFP |
| Number of Flutes | 14 |
| Hub Diameter (mm) | 84.00 |
| Hub Diameter (Decimal Inch) | 3.3071 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 3200 |
| Complete Insert Compatibility | SPHX 1205PC.R.. |
