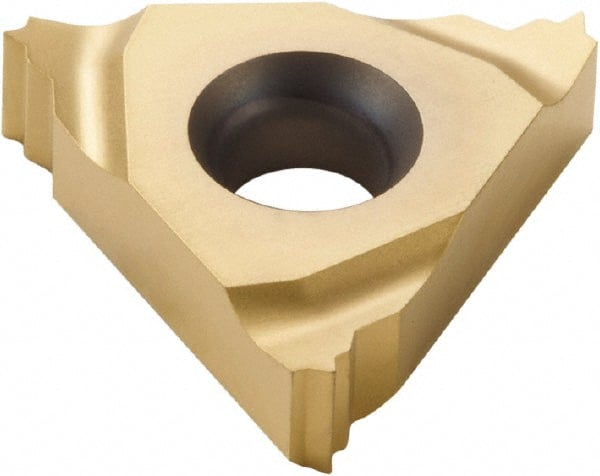

Seco - 11NR Internal Right Hand ISO Laydown Threading Insert - Grade CP500, TiAlN/TiN Coated Carbide, 6.35mm Inscribed Circle
Item #: 74870924
Brand: Seco
Model #: 45756
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 11NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | ISO |
| Manufacturer's Grade | CP500 |
| Pitch (mm) | 0.75 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1181 |
| Thickness (mm) | 3.00 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0400 |
