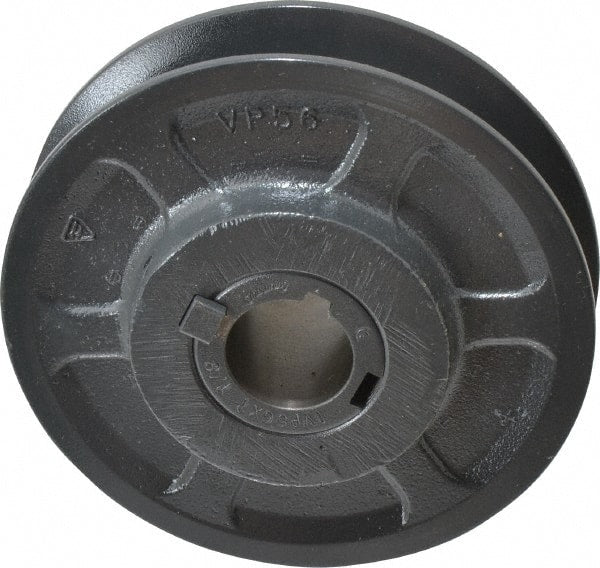

Browning - 1-1/8" Inside Diam x 5.35" Outside Diam, 1 Groove, Variable Pitched Sheave - Belt Sections 3L, 4L, A, 5L & B, 1-7/8" Sheave Thickness, 3/4 to 1-1/8" Face Width
Item #: 74934092
Brand: Browning
Model #: 1VP56X 1 1/8
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Number of Grooves | 1 |
| Inside Diameter (Inch) | 1-1/8 |
| Outside Diameter (Decimal Inch) | 5.3500 |
| Belt Section | 3L, 4L, A, 5L, B |
| Maximum Face Width (Inch) | 1-1/8 |
| Minimum Face Width (Inch) | 3/4 |
| Sheave Thickness (Inch) | 1-7/8 |
| Minimum Pitch Diameter of Belt Type 3L (Decimal Inch) | 3.90 |
| Maximum Pitch Diameter of Belt Type 3L (Decimal Inch) | 4.70 |
| Maximum Pitch Diameter of Belt Type 4L or A (Decimal Inch) | 5.00 |
| Minimum Pitch Diameter of Belt Type 4L or A (Decimal Inch) | 4.00 |
| Maximum Pitch Diameter of Belt Type 5L or B (Decimal Inch) | 5.30 |
| Minimum Pitch Diameter of Belt Type 5L or B (Decimal Inch) | 4.30 |
| Minimum Open Turns for 4L Or A Belts | 0 |
| Minimum Open Turns for 5L or B Belts | 1 |
| Maximum Open Turns for 4L or A Belts | 5 |
| Maximum Open Turns for 5L or B Belts | 6 |
