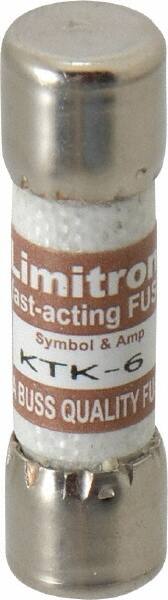

Cooper Bussmann - 600 VAC, 6 Amp, Fast-Acting General Purpose Fuse - Fuse Holder Mount, 1-1/2" OAL, 100 at AC kA Rating, 13/32" Diam
Item #: 74974106
Brand: Cooper Bussmann
Model #: KTK-6
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Amperage | 6 |
| Voltage | 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 38.10 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Overall Diameter (mm) | 10.30 |
| Overall Diameter (Inch) | 13/32 |
| Overall Diameter (Decimal Inch) | 0.4100 |
| Material | Melamine |
| Mounting Type | Fuse Holder |
| Color | Black |
| Interrupting Rating (kA) | 100 @ AC |
| Standards Met | CE Certified; CSA C22.2 No.248.14 Class 1422-01 File 53787 HRC-MISC Certified; RoHS Compliant; UL Listed 248-14 Guide JDYX File E19180 |
