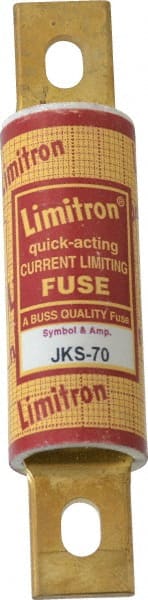

Cooper Bussmann - 600 VAC, 70 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 4-5/8" OAL, 200 (RMS) kA Rating, 1-1/8" Diam
Item #: 74975756
Brand: Cooper Bussmann
Model #: JKS-70
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | J |
| Amperage | 70 |
| Voltage | 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 117-1/2 |
| Overall Length (Inch) | 4-5/8 |
| Overall Length (Decimal Inch) | 4.6300 |
| Overall Diameter (mm) | 28.60 |
| Overall Diameter (Inch) | 1-1/8 |
| Overall Diameter (Decimal Inch) | 1.1300 |
| Mounting Type | Bolt-on |
| Interrupting Rating (kA) | 200 (RMS) |
| Standards Met | CE Certified; CSA Class 1422-02 File 53787 Certified; UL Listed Guide JDDZ File E4273 |
