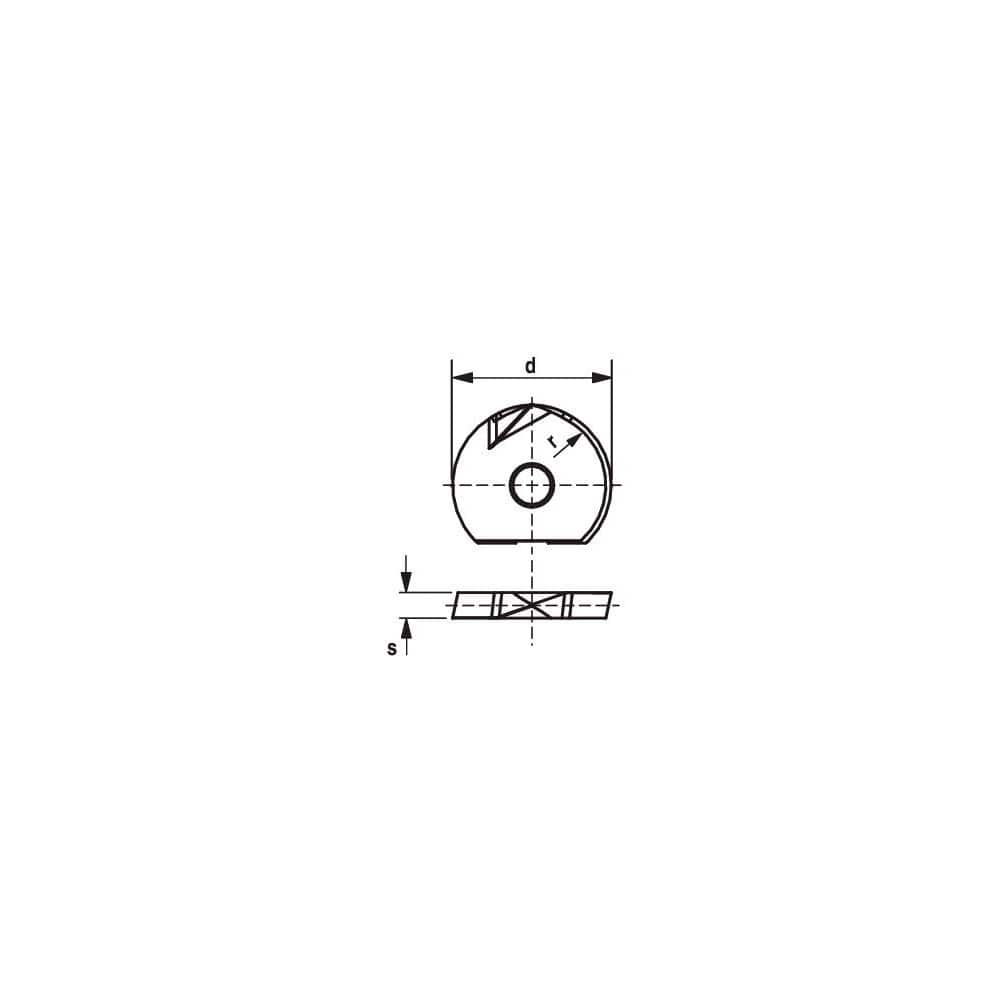

Milling Insert: ROHX 0820R4-MR5 CTPP211, CTPP211, Solid Carbide N/A Finish,
Item #: 75100057
Brand: Ceratizit
Model #: 5614971300
Product Specifications
| Insert Style | ROHX |
| Insert Size Code | 0820 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTPP211 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Insert Hand | Neutral |
| Series | ROHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1575 |
| Insert Shape | Ball Nose |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Non-Ferrous Metal; Hard Material; Super-Alloys & Titanium; Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | S; H; K; M; N |
| Iso Code | ROHX 0820R4-MR5 CTPP211 |
| Chip Breaker | MR5 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0787 |
