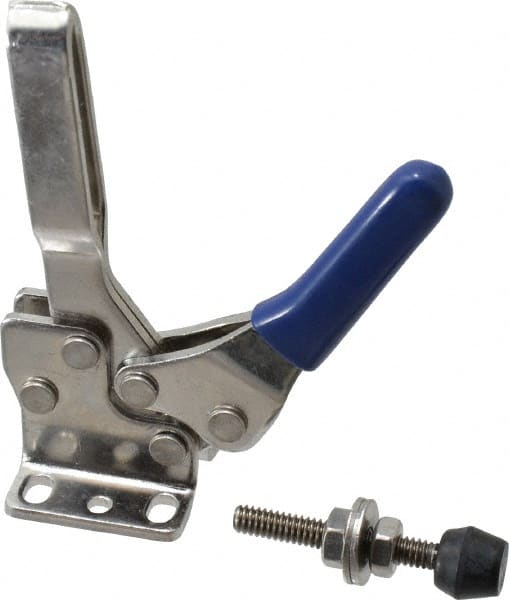

Gibraltar - 250 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp - 61° Handle Movement, 91° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel
Item #: 75134882
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Horizontal handles are designed with a handle that is parallel to the clamping bar and a lower height profile for better overhead clearance during operations. They are manufactured with holding capacities of up to 2,400 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 1110.00 |
| Holding Capacity (Lb.) | 250.00 |
| Length Distance Between Mount Holes (mm) | 26.16 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.03 |
| Width Distance Between Mount Holes (mm) | 28.45 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.1200 |
| Height Under Bar (mm) | 23.62 |
| Height Under Bar (Decimal Inch) | 0.9300 |
| Overall Length (mm) | 167.13 |
| Overall Length (Decimal Inch) | 6.5800 |
| Overall Height (mm) | 49.53 |
| Overall Height (Decimal Inch) | 1.9500 |
| Base Length (mm) | 37.08 |
| Base Length (Decimal Inch) | 1.4600 |
| Base Width (mm) | 39.37 |
| Base Width (Decimal Inch) | 1.5500 |
| Handle Style | Straight |
| Material | Stainless Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 6 |
| Mounting Hole Diameter (mm) | 4.80 (Small); 5.50 (Large) |
| Mounting Hole Diameter (Decimal Inch) | 0.1900 (Small); 0.2200 (Large) |
| Front of Base To Tip Of Toggle Bar (mm) | 58.42 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.3000 |
| Bar Opening (Degrees) | 91.00 |
| Handle Movement (Degrees) | 61.00 |
| Maximum Mechanical Advantage | 3:1; 7:1 |
| Spindle Thread Size | 1/4-20 |
| Spindle Length (Decimal Inch) | 1.5000 |
| Spindle Travel (mm) | 39.12 |
| Spindle Travel (Decimal Inch) | 1.5400 |
| Bar Width (Decimal Inch) | 0.4900 |
| Bar Width (mm) | 12.45 |
| Includes | (1) Spindle; (2) Nuts; (2) Washers |
