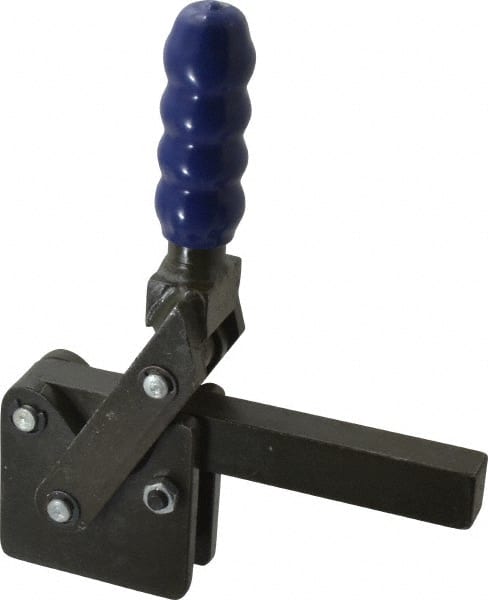

Gibraltar - 2,500 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 129° Handle Movement, 199° Bar Opening, Solid Bar, Straight Base, Electro-Plated Zinc, Carbon Steel
Item #: 75135137
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
Solid Bars are designed to retain a spindle that is fixed to a specific position on the bar. The spindle retainers are commonly welded to the bar of the clamp at a customer specified position. Generally, the solid bar models have greater holding capacity than the equivalent U-bar model.
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Straight |
| Bar End Type | Closed |
| Holding Capacity (N) | 11100.00 |
| Holding Capacity (Lb.) | 2500.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 2.0 |
| Width Distance Between Mount Holes (Decimal Inch) | 3.5000 |
| Height Under Bar (mm) | 56.90 |
| Height Under Bar (Decimal Inch) | 2.2400 |
| Overall Length (mm) | 190.50 |
| Overall Length (Decimal Inch) | 7.5000 |
| Overall Height (mm) | 240.03 |
| Overall Height (Decimal Inch) | 9.4500 |
| Base Length (mm) | 82.55 |
| Base Length (Decimal Inch) | 3.2500 |
| Base Width (Decimal Inch) | 2.0000 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Front of Base To Tip Of Toggle Bar (mm) | 107.95 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 4.2500 |
| Bar Opening (Degrees) | 199.00 |
| Handle Movement (Degrees) | 129.00 |
| Maximum Mechanical Advantage | 3.4:1; 4.5:1 |
| Bar Width (Decimal Inch) | 1.0000 |
| Bar Width (mm) | 25.40 |
| Bar Thickness (mm) | 19.05 |
| Bar Thickness (Decimal Inch) | 0.7500 |
