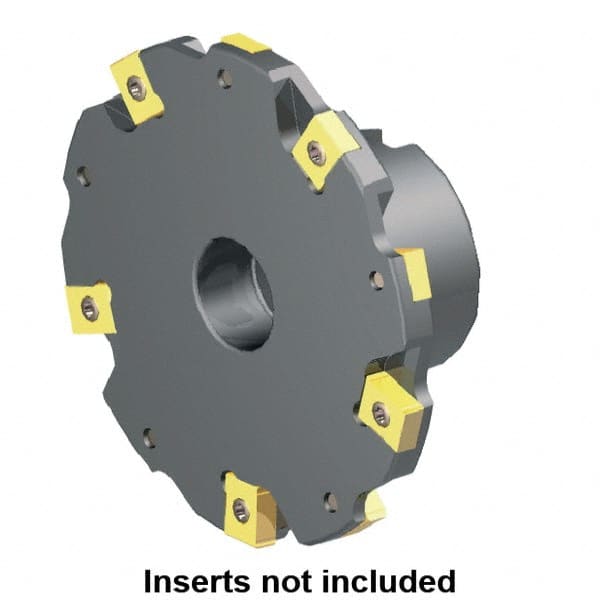

Kennametal - Shell Mount Connection, 0.2362" Cutting Width, 1.6929" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, 8 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1235... Insert
Item #: 75248724
Brand: Kennametal
Model #: 1150511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 43.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6929 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Number of Teeth | 8 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1235... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Cutting Width (Decimal Inch) | 0.2756 |
| Maximum Cutting Width (mm) | 7.00 |
| Hub Diameter (mm) | 70.00 |
| Hub Diameter (Decimal Inch) | 2.7559 |
