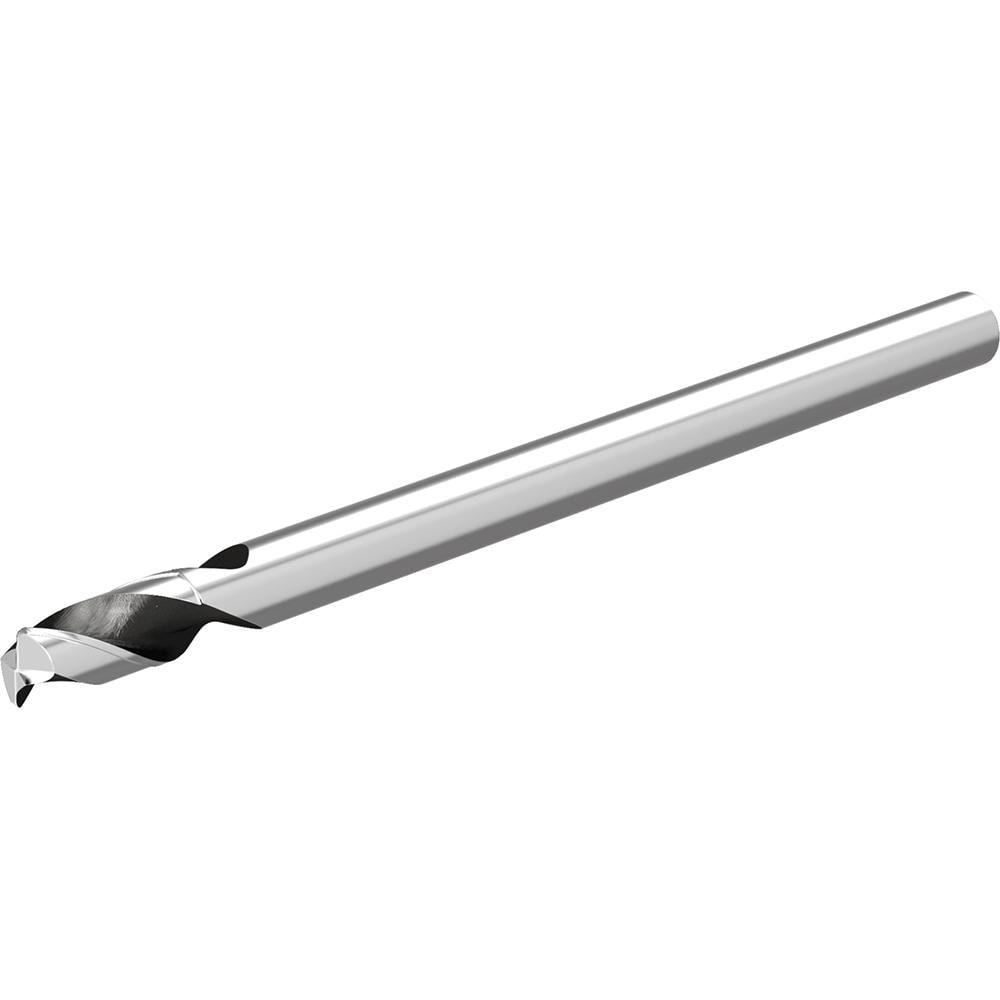

Brand: Widia / Part #: 6853397
Item #: 98130917
Brand: Widia
Model #: 6853397
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Coating/Finish | Uncoated |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 2 |
| Single Or Double End | Single |
| Overall Length (Inch) | 2 |
| Length of Cut (Inch) | 5/16 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Flute Direction | Right Hand |
| Helix Angle | 33 |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3125 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Neck Diameter (Decimal Inch) | 0.0000 |
| Reach Length (Decimal Inch) | 0.3125 |
| Reach Length (Inch) | 5/16 |
| Minimum Helix Angle | 37 |
| Maximum Helix Angle | 39 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Series | 2A09 |
| Coating Classification | Uncoated |
| Helix Style | Variable |
