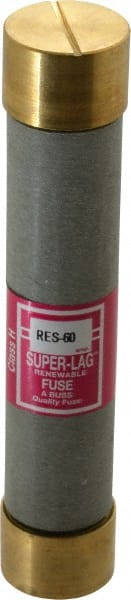

Cooper Bussmann - 600 VAC, 60 Amp, Time Delay Renewable Fuse - Fuse Holder Mount, 5-1/2" OAL, 10 (RMS) kA Rating, 1-1/16" Diam
Item #: 75381087
Brand: Cooper Bussmann
Model #: RES-60
Exact Tooling IR#: 04
Features and Benefits
Renewable fuses have replaceable fuse elements, allowing the fuse body to be reused if not damaged after an overload or short circuit. They are made to Class H standards. Renewable fuses and links are not recommended for new applications.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Renewable |
| Fuse Class | H |
| Amperage | 60 |
| Voltage | 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 139.70 |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (Decimal Inch) | 5.5000 |
| Overall Diameter (mm) | 27.00 |
| Overall Diameter (Inch) | 1-1/16 |
| Overall Diameter (Decimal Inch) | 1.0600 |
| Mounting Type | Fuse Holder |
| Reusability | Renewable |
| Interrupting Rating (kA) | 10 (RMS) |
