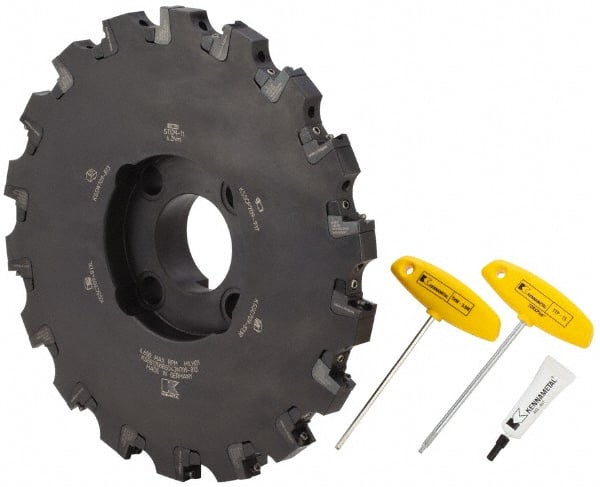

Kennametal - Shell Mount Connection, 0.709" Cutting Width, 3-5/16" Depth of Cut, 12" Cutter Diam, 2-1/2" Hole Diam, 18 Tooth Indexable Slotting Cutter - KSSS Toolholder, SD.. 43.. Insert, Neutral Cutting Direction
Item #: 75412577
Brand: Kennametal
Model #: 2268727
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 18.01 |
| Cutting Width (Decimal Inch) | 0.7090 |
| Maximum Depth of Cut (mm) | 84.13 |
| Maximum Depth of Cut (Decimal Inch) | 3.3120 |
| Cutter Diameter (mm) | 304.80 |
| Cutter Diameter (Decimal Inch) | 12.0000 |
| Cutter Diameter (Inch) | 12 |
| Hole Diameter (mm) | 63.50 |
| Hole Diameter (Inch) | 2-1/2 |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Number of Teeth | 18 |
| Toolholder Style | KSSS |
| Series | KSSS |
| Insert Style | SD.. 43.. |
| Staggered Tooth | No |
| Number of Cutter Inserts | 18 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Maximum RPM | 6650 |
| Minimum Cutting Width (Decimal Inch) | 0.7090 |
| Maximum Cutting Width (Decimal Inch) | 0.8130 |
| Maximum Cutting Width (mm) | 20.65 |
| Hub Diameter (mm) | 133.35 |
| Hub Diameter (Decimal Inch) | 5.2500 |
