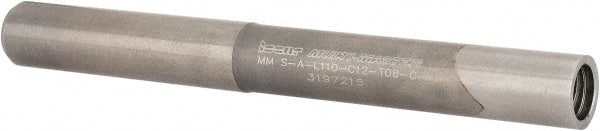

Iscar - Multimaster 12mm 90° Stepped Shank Milling Tip Insert Holder & Shank - 0.453" Neck Diam, T08 Neck Thread, 110mm OAL, Carbide MM S-A Tool Holder
Item #: 75420844
Brand: Iscar
Model #: 3102992
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 90 Degree Stepped Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Neck Diameter (Decimal Inch) | 0.4530 |
| Neck Thread Size | T08 |
| Toolholder Material | Carbide |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3310 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 2.2760 |
| Effective Length (mm) | 60.00 |
| Effective Length (Decimal Inch) | 2.3622 |
| Milling Tip Style | BCM-MM, HCE-MM, HCM-MM, HP E90AN-MM-07, MM EB, MM EC-4, MM GRIT-K/P-45A, MM HBR, MM HCR |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
