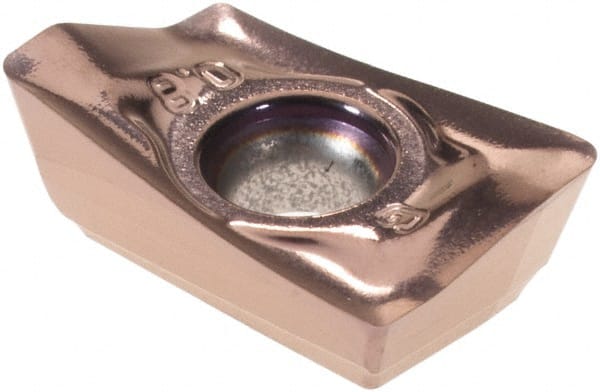

ADHT1204PER-G88 WXN15 Carbide Milling Insert TiCN Plus Finish, 0.5354″ Long x 0.1874″ Thick x 0.3307″ Wide
Item #: 75436568
Brand: Walter
Model #: 5055715
Product Specifications
| Insert Style | ADHT |
| Insert Size Code | 1204PER |
| Insert Size | 1204 |
| Insert Material | Solid Carbide |
| Material Grade | N15 |
| Manufacturer Grade | WXN15 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | ADHT |
| Coating Process | PVD |
| Number Of Cutting Edges | 2 |
| Insert Shape | Diamond |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Iso Code | ADHT1204PER-G88 WXN15 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | ADHT1204PER-G88 |
| Chip Breaker | G88 |
| Shape | Parallelogram |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.3307 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Length (Decimal Inch - 4 Decimals) | 0.5354 |
