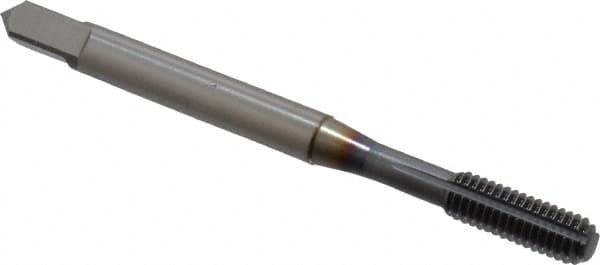

OSG - #10-32 UNF H5 Thread Limit Bottoming Thread Forming Tap - Powdered Metal High Speed Steel, TiCN Finish, 2-3/8" OAL, 7/8" Thread Length, Right Hand Thread, Series EXOTAP NRT
Item #: 75490532
Brand: OSG
Model #: 1405005808
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is used on stainless steels, cast iron and aluminum alloys.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-32 |
| Thread Limit | H5 |
| Chamfer | Bottoming |
| Finish/Coating | TiCN |
| Material | Powdered Metal High Speed Steel |
| Overall Length (Inch) | 2-3/8 |
| Thread Standard | UNF |
| Thread Length (Inch) | 7/8 |
| Series/List | EXOTAP NRT |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Material Application | Alloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel |
