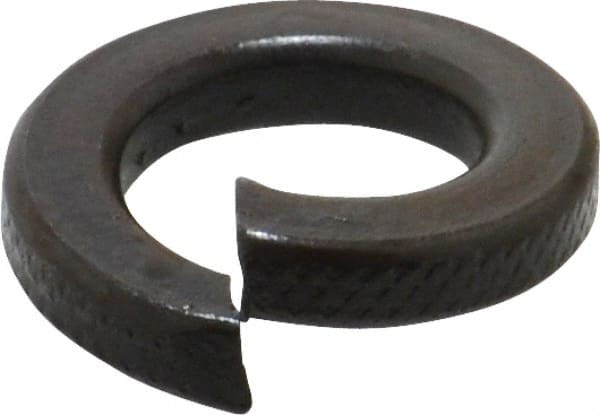

Value Collection - 5/8", 0.628" ID, 0.188" Thick Split Lock Washer - Grade 2 Spring Steel, Uncoated, 0.628" Min ID, 0.641" Max ID, 1.087" Max OD
Item #: 75558890
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 5/8 |
| Material | Spring Steel |
| Material Grade | Grade 2 |
| Finish/Coating | Uncoated |
| Inside Diameter (Decimal Inch) | 0.6280 |
| Thickness (Decimal Inch) | 0.1880 |
| Minimum Inside Diameter (Decimal Inch) | 0.6280 |
| Maximum Inside Diameter (Decimal Inch) | 0.6410 |
| Maximum Outside Diameter (Decimal Inch) | 1.0870 |
| Military Specification | Does Not Meet Military Specifications |
