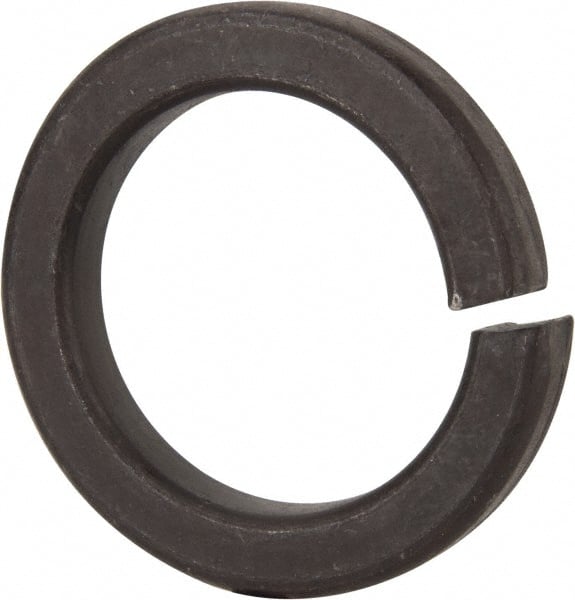

Value Collection - 2-1/2", 0.496" Thick Split Lock Washer - Grade 8 Spring Steel, Uncoated, 2.512" Min ID, 2.543" Max ID, 3.648" Max OD
Item #: 75559013
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 2-1/2 |
| Material | Spring Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Uncoated |
| Thickness (Decimal Inch) | 0.4960 |
| Minimum Inside Diameter (Decimal Inch) | 2.5120 |
| Maximum Inside Diameter (Decimal Inch) | 2.5430 |
| Maximum Outside Diameter (Decimal Inch) | 3.6480 |
| Military Specification | Does Not Meet Military Specifications |
