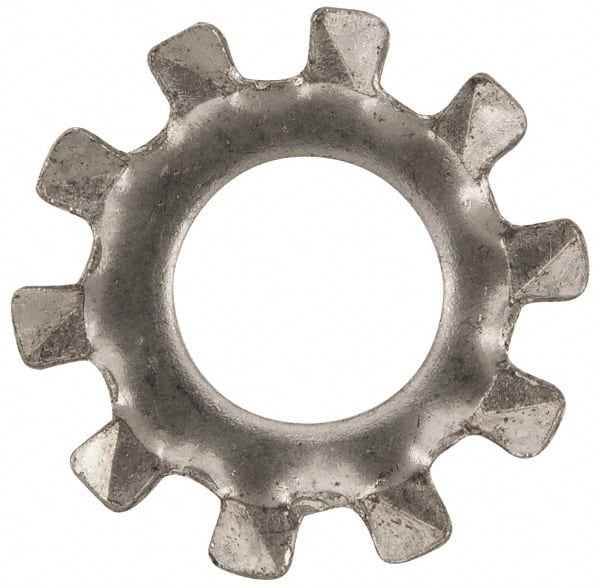

Value Collection - 5/16" Screw, 0.326" ID, Stainless Steel External Tooth Lock Washer - 0.601" OD, Uncoated, Grade 18-8
Item #: 75559690
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
External tooth lock washers have teeth along the outside diameter. They provide greater resistance to loosening than internal tooth lock washers.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Tooth Type | External Tooth |
| Screw Size | 5/16 |
| System of Measurement | Inch |
| Material | Stainless Steel |
| Inside Diameter (Decimal Inch) | 0.3260 |
| Outside Diameter (Decimal Inch) | 0.6010 |
| Thickness (Decimal Inch) | 0.029 |
| Material Grade | 18-8 |
| Finish/Coating | Uncoated |
| Minimum Inside Diameter (Decimal Inch) | 0.3200 |
| Minimum Outside Diameter (Decimal Inch) | 0.5880 |
| Military Specification | Does Not Meet Military Specifications |
