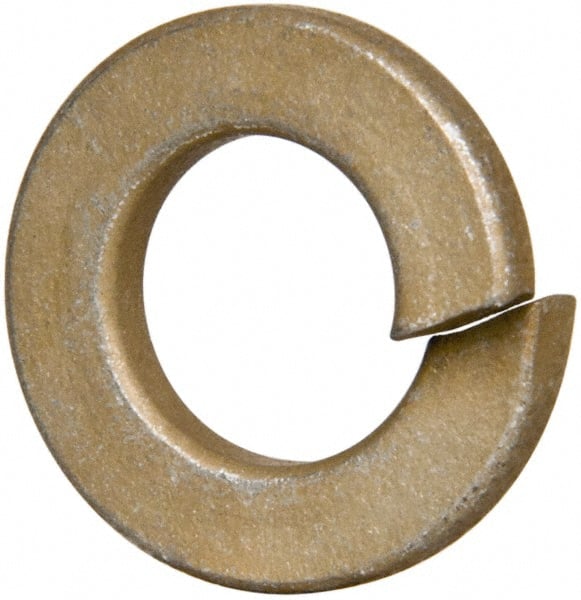

Value Collection - 5/16", 0.314" ID, 0.078" Thick Split Lock Washer - Grade 2 Spring Steel, Zinc Yellow Dichromate Finish, 0.314" Min ID, 0.322" Max ID, 0.583" Max OD
Item #: 75559898
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 5/16 |
| Material | Spring Steel |
| Material Grade | Grade 2 |
| Finish/Coating | Zinc Yellow Dichromate |
| Inside Diameter (Decimal Inch) | 0.3140 |
| Thickness (Decimal Inch) | 0.0780 |
| Minimum Inside Diameter (Decimal Inch) | 0.3140 |
| Maximum Inside Diameter (Decimal Inch) | 0.3220 |
| Maximum Outside Diameter (Decimal Inch) | 0.5830 |
| Military Specification | Does Not Meet Military Specifications |
