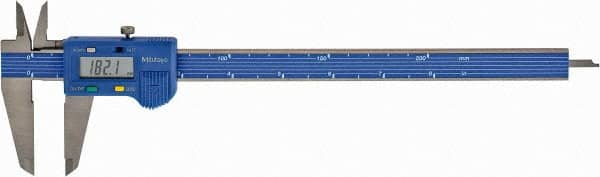

Mitutoyo - 0 to 200mm Range, 0.1mm Resolution, Electronic Caliper - Stainless Steel with 40mm Stainless Steel Jaws, 0.2mm Accuracy
Item #: 75638429
Brand: Mitutoyo
Model #: 700-123-10
Exact Tooling IR#: 04
Features and Benefits
This caliper does not have an IP rating or offer any special protection against dust or water.
| Product Specifications | |
|---|---|
| Minimum Measurement (mm) | 0 |
| Minimum Measurement (Decimal Inch) | 0 |
| Maximum Measurement (Decimal Inch) | 8 |
| Maximum Measurement (mm) | 200 |
| Accuracy Plus/Minus (Decimal Inch) | 0.0050 |
| Accuracy Plus/Minus (mm) | 0.2000 |
| Resolution (Decimal Inch) | 0.0010 |
| Resolution (mm) | 0.1000 |
| IP Rating | None |
| Data Output | None |
| Jaw Length (Decimal Inch) | 1.5748 |
| Jaw Length (mm) | 40.00 |
| Includes Inside Diameter Jaws | Yes |
| Offset Jaw | No |
| Application | Depth; Inside Diameter; Outside Diameter |
| Material | Stainless Steel |
| Jaw Material | Stainless Steel |
| Power Source | Battery |
| Battery Type | SR44 |
| Includes Depth Measurement Rod | Yes |
| Includes | Battery; Caliper |
