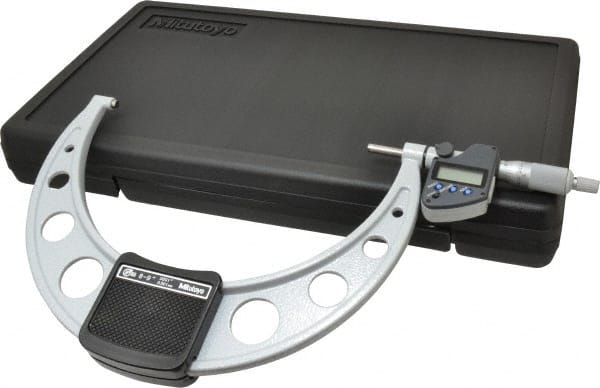

Mitutoyo - 8 to 9 Inch Range, 0.0001 Inch Resolution, Standard Throat, IP65 Electronic Outside Micrometer - 0.0002 Inch Accuracy, Ratchet Stop Thimble, Carbide Face, SR44 Battery, Data Output, Includes Certification of Inspection and Wooden Box
Item #: 75638478
Brand: Mitutoyo
Model #: 293-354-30
Exact Tooling IR#: 04
Features and Benefits
Ratchet stop thimbles offer audible feedback and constant measuring pressure on the spindle while measuring. They may cause microshocks and require two hands to make a measurement.
| Product Specifications | |
|---|---|
| Type | Standard |
| Minimum Measurement (Decimal Inch) | 8.0000 |
| Minimum Measurement (mm) | 203.20 |
| Maximum Measurement (mm) | 228.60 |
| Maximum Measurement (Decimal Inch) | 9.0000 |
| Thimble Type | Ratchet Stop |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000100 |
| Accuracy Plus/Minus (Decimal Inch) | 0.000150 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | No |
| Data Output | Yes |
| Measuring Face Material | Carbide |
| Battery Type | SR44 |
| Includes | Certification of Inspection; Wooden Box |
