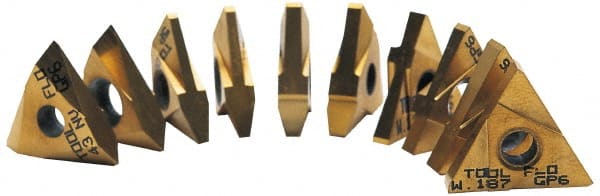

Tool-Flo - 32TNMA Grade GP50, 1.57mm Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Right Hand, TiN Finish
Item #: 75641563
Brand: Tool-Flo
Model #: R0806200N4C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Material Grade | C5/C6 |
| Manufacturer's Grade | GP50 |
| Coating | TiN |
| Insert Hand | Right Hand |
| Relief Angle | 2 |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Overall Width (Decimal Inch) | 0.1270 |
