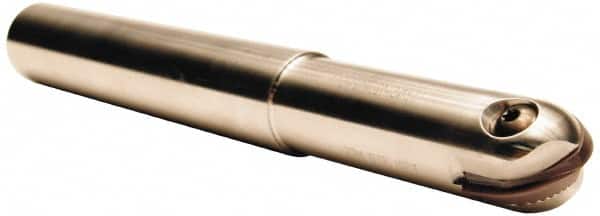

Tool-Flo - 1" Cut Diam, 3-1/8" Max Depth of Cut, 1" Shank Diam, 9.062" OAL, Indexable Ball Nose End Mill - 3-1/8" Head Length, Straight Shank, TNBS Toolholder, TBNR 1000 Insert
Item #: 75641712
Brand: Tool-Flo
Model #: TBNS10090WS1000
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 3.1250 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | TBNR 1000 |
| Toolholder Style | TNBS |
| Overall Length (Decimal Inch) | 9.0620 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 3.1250 |
| Neck Diameter (Decimal Inch) | 0.9060 |
