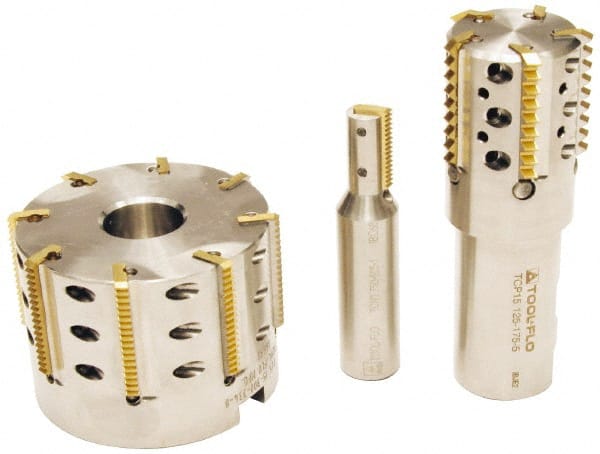

Tool-Flo - 1.116 (UN/115NPT), 1.247 (8NPT)" Cut Diam, 1-1/2" Max Depth of Cut, 1" Shank Diam, Internal/External Indexable Thread Mill - Insert Style TI 15N, 3 Inserts, Toolholder Style TCP, 4-1/2" OAL
Item #: 75642645
Brand: Tool-Flo
Model #: TMPC161113
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.1160 (UN/115NPT); 1.2470 (8NPT) |
| Maximum Hole Depth (Decimal Inch) | 1.5000 |
| Insert Style | TI 15N |
| Toolholder Style | TCP |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.5000 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal/External |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
