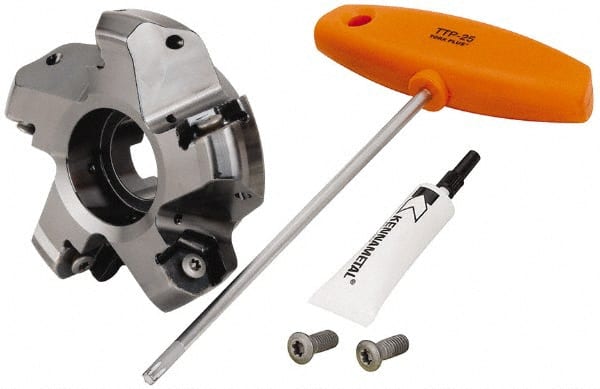

Kennametal - 4" Cut Diam, 1-1/4" Arbor Hole, 8mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, HNPJ 1307... Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Dodeka Max
Item #: 75745554
Brand: Kennametal
Model #: 4057579
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (mm) | 118.92 |
| Cutting Diameter (Decimal Inch) | 4.6820 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7500 |
| Overall Height (mm) | 44.45 |
| Insert Compatibility | HNPJ 1307... |
| Series | Dodeka Max |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 5 |
| Hub Diameter (Decimal Inch) | 2.8750 |
| Hub Diameter (mm) | 73.03 |
| Maximum Body Diameter (Decimal Inch) | 4.4820 |
| Maximum RPM | 6300 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNPJ 130720ANSNGD |
