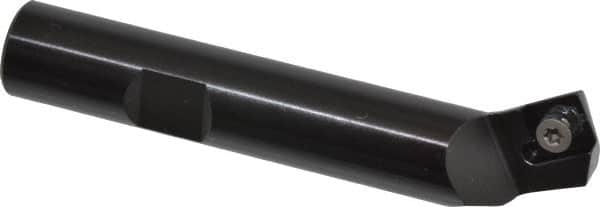

Kennametal - 60° Lead Angle, 0.981" Max Cut Diam, 0.46" Min Cut Diam, 0.136" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 1 Insert, SDEB 26152 Insert Style, 3" Overall Length, Straight Shank
Item #: 75816991
Brand: Kennametal
Model #: 1023681
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.4600 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9810 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Lead Angle | 60 |
| Overall Length (Decimal Inch) | 3.0000 |
| Insert Style | SDEB 26152 |
| Maximum Depth of Cut (Decimal Inch) | 0.1360 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| Toolholder Style | KIPR |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.2200 |
| Weldon Flat | Yes |
| Maximum RPM | 11000 |
