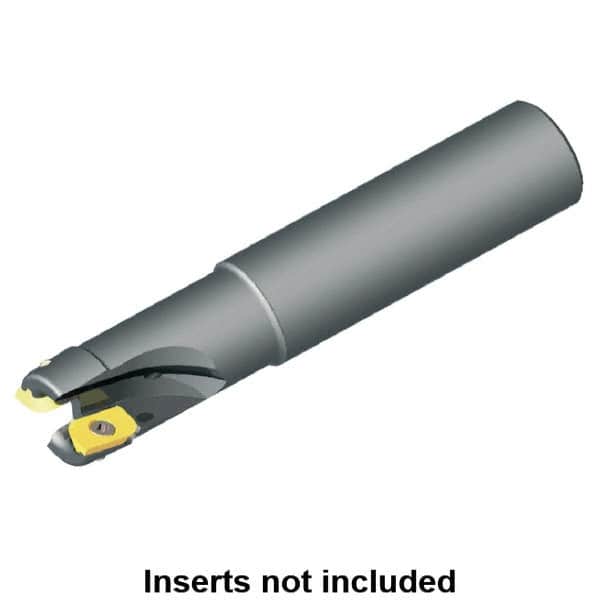

Kennametal - 2" Cut Diam, 0.49" Max Depth of Cut, 1" Shank Diam, 102.36mm OAL, Indexable Square Shoulder End Mill - LF.W 3.53.. Inserts, Weldon Shank, 0° Lead Angle, Series RPF
Item #: 75817098
Brand: Kennametal
Model #: 1025517
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 102.36 |
| Overall Length/Projection (Decimal Inch) | 4.0300 |
| Lead Angle | 0 |
| Series | RPF |
| Maximum Depth of Cut (Decimal Inch) | 0.4900 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | KISR |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 50.80 |
| Minimum Cutting Diameter (Inch) | 2 |
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Head Length (Decimal Inch) | 1.7500 |
| Weldon Flat | Yes |
| Insert Compatibility | LF.W 3.53.. |
| Shank Length (Decimal Inch) | 2.2500 |
| Shank Length (mm) | 57.15 |
| Maximum RPM | 20400 |
